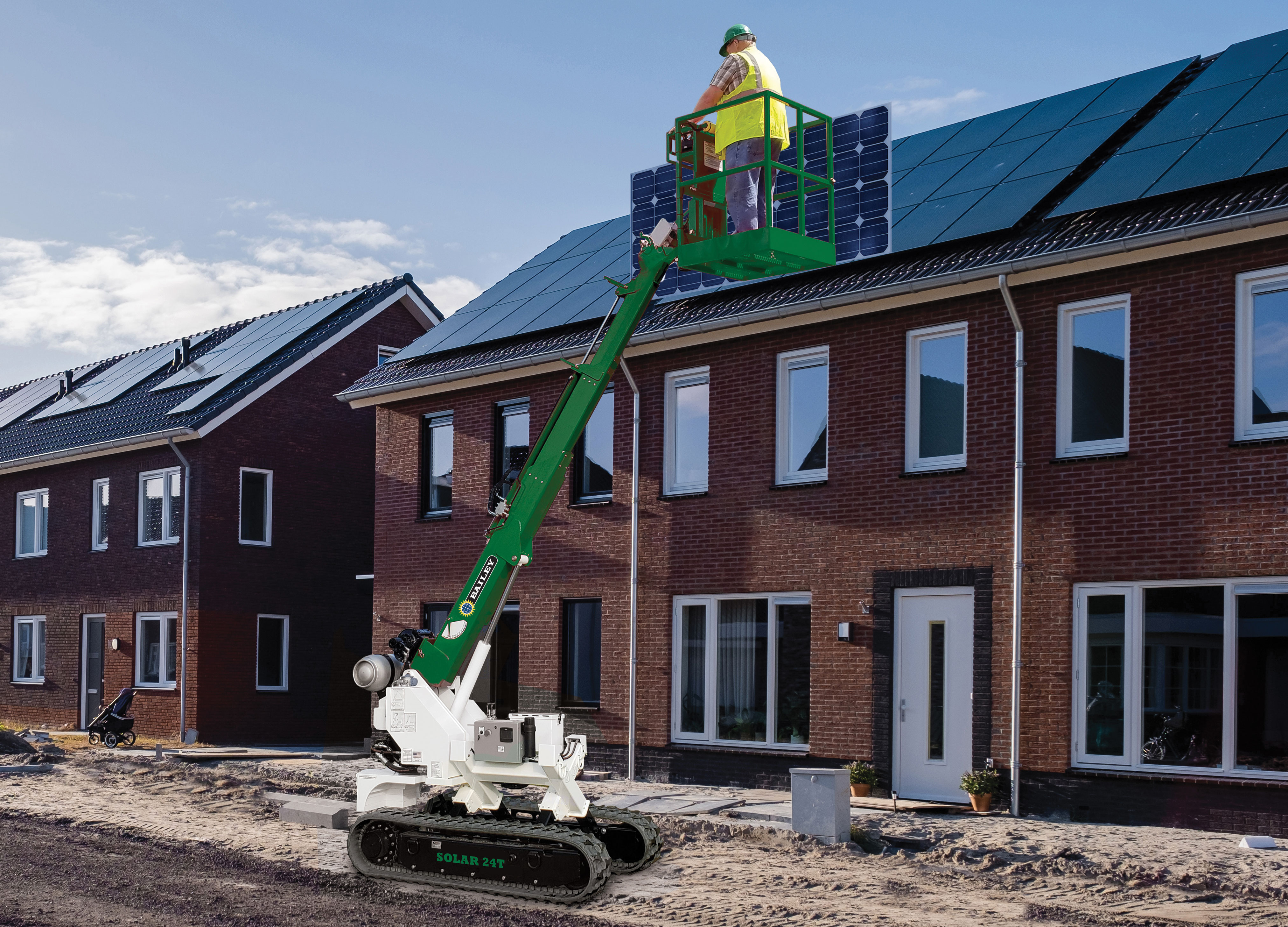

Solar 24T Mini Crane
The Solar 24T is capable of being equipped with many attachments. We designed the attachments for easy removal and installation.
The Solar 24T telehandler is intended for outdoor and uneven surfaces and provides all-terrain performance that disperses low ground contact pressure for those jobs that wheel-load pressure is critical. The rugged Trax gas engine can also be converted to LP with our conversion kit.
- 24 Feet (7.33M) of Vertical Reach
- 16 Feet (4.88M) of Horizontal Reach
- 5000 LB (2722Kg) Capacity
- Woods Power Grip system
- 5800 LB (2630 Kg) Machine Weight
- Side Slope Operation: 15 Degrees
- Tracks - Telescoping
- Propane-powered Kohler PCH740 Power-unit
Specifications
Model: Solar 24T
Hook Capacity: 5,000 lbs
Fork Capacity: 1,500 lbs
Glazier Capacity: 1,400 lbs
Robot or Jib Capacity: 1,000 lbs
Winch Capacity: 3,000 lbs
Reach: Industry leading reach with below grade capability.
Motor: Propane-powered Kohler PCH740 Power-unit
Weight: 6,000 Lbs + Attachment
Radio Remote Controls
Boom: Base unit, 2 telescoping booms and one manual pull-out boom. Attachments replace pull-out boom.
Hydraulics: Gear Pump with Load Sense Dump.
Rated Load Limiter: Displays rated load and actual load. Stops when rated load is reached. Detects which attachment is installed and automatically adjusts load parameters.
Precise & Efficient Piston Pump
- Load Sensing
- Horsepower Limiting

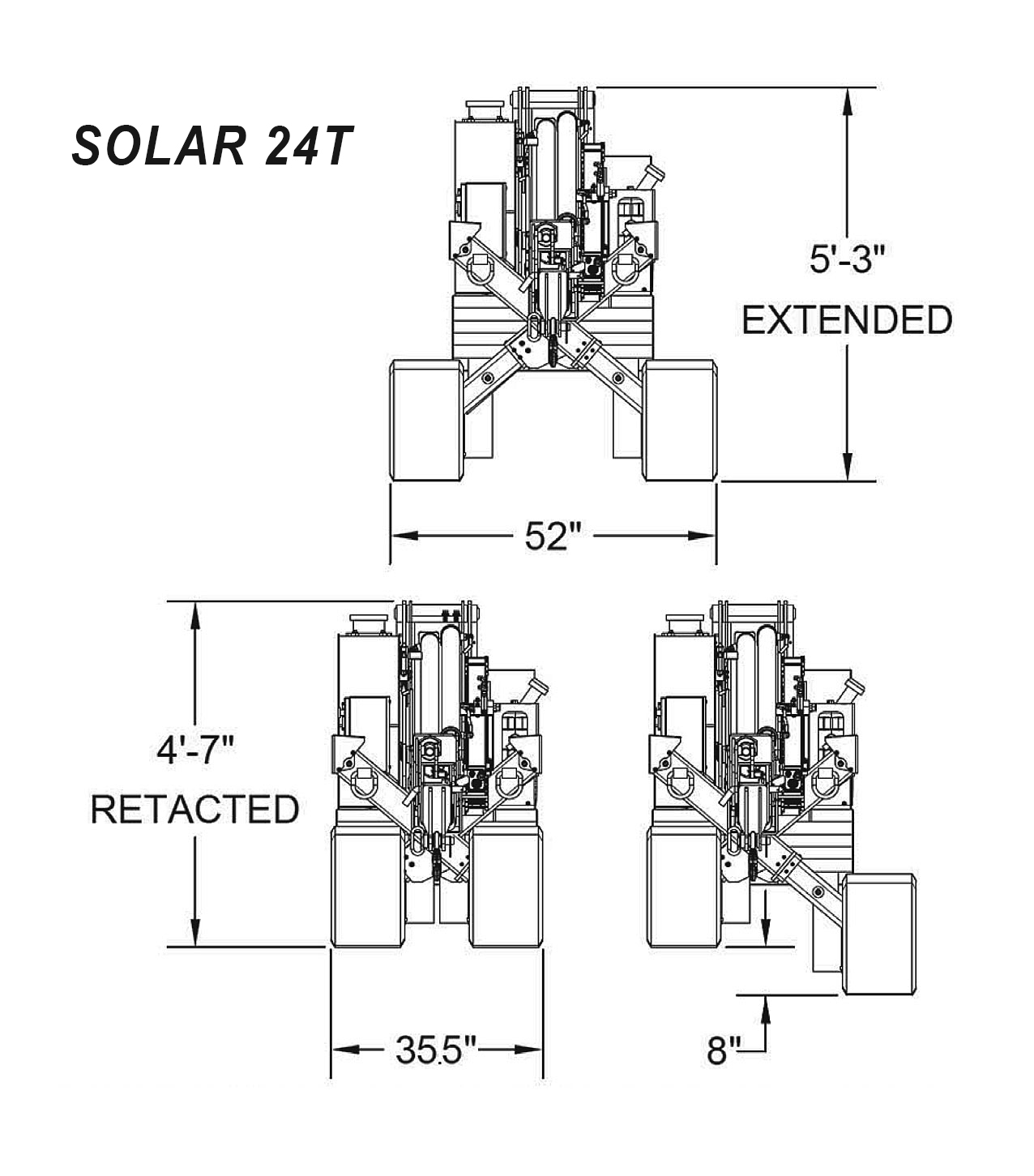

- 8” of Vertical Slope Adjustment
- 35.5” Retracted - Single Door
- 52” Max Width for Stability
- No Outriggers Required
- Pick & Carry Full Capacity
ISO 9001:2015 REGISTERED MANUFACTURING COMPANY
Features
Rated Load Limiter
Automatically detects attachment
and adjusts loading parameters
Propane-powered Kohler PCH740 Power-unit
- 25 Net Horsepower
- Variable Speed Governor
- 3 Year Unlimited Hour Commercial Warranty
Independently Adjustable
Tracks
8” of Vertical Slope Adjustment
