Brandon Omni Glass Lifter
Proactive Safety features
- Warning you of potential problems
- User friendly command prompts
- Continually Monitors Lifting Operations
- Maximizes productivity
- Reduces human error
The Brandon Omni Glass Lifter Telehandler is shown with the glass suction cup attachment and 3 axis manipulator. This provides extensive glass lifting capability. Other materials can be lifted including metals, granite, quartz, building panels and even concrete. The Brandon OMNI is capable of multi-directional steering. It allows the user to maintain its orientation while maneuvering sideways, rotate about its center for tight turning, and even function with standard drive just like an automobile. It affords the user exceptional control during operation.
- 27 Feet (8.23M) of Vertical Reach
- 16 Feet (4.88M) of Horizontal Reach
- 1100 LB (2500 Kg) Capacity
- Woods Power Grip system
- 5800 LB (2500 Kg) Machine Weight
- 2 Wheel Drive, 2 Wheel Brakes
- 36 Volt Battery Powered
Specifications
Model: Brandon Omni
Capacity: 4,000 lbs
Power: 36Volt 7HP Electric Motor
Steering: 2 Omni Directional Wheels
Drive: 2 Wheel Drive and Braking
Charger: On-board 110V
Weight: 5,800 Lbs + Attachment
Radio Remote Controls
Rated Load Limiter: Displays rated load and actual load. Stops when overload is reached. Detects attachment and adjusts load parameters.
System Display: Includes Rated Load Limiter and system information
ISO 9001:2015 REGISTERED MANUFACTURING COMPANY
Glass Lifter Features
Manual over-ride for quick, precise adjustments
Tip assembly unloads on cart for tight access maneuvering
Omni-Directional Drive
Two Wheel Steer
Typical front wheel steering like an automobile
Spin Steer
Wheels rotate to a position so it rotates about its center
90° Crab Steer
Wheels rotate 180° to provide sideways travel
Three 180 Rotary Actuators Provide Precise Positioning

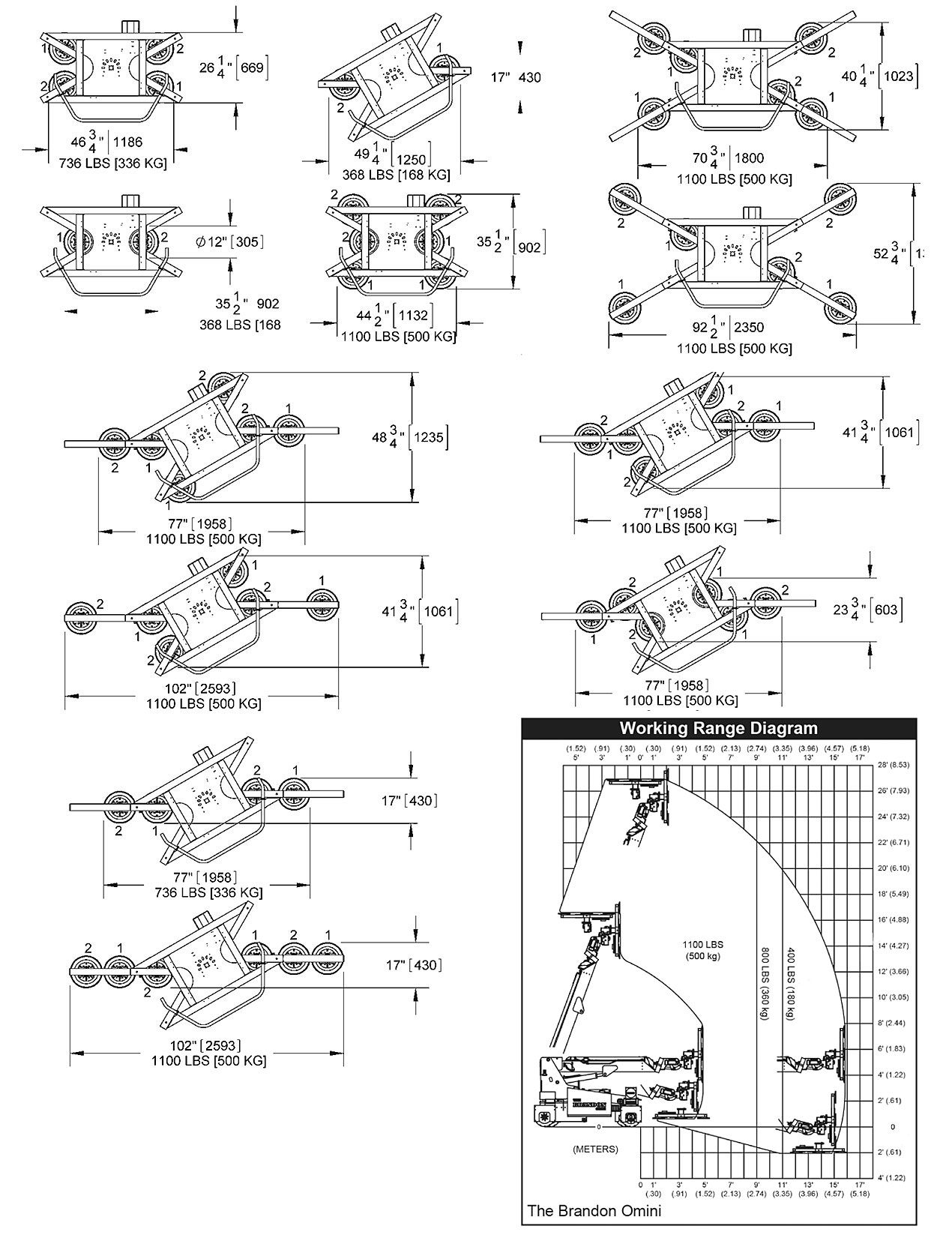

Frame Configurations and Capacities
Features
Rated Load Limiter
Automatically detects attachment
and adjusts loading parameters
Wheel Covers
For safety and protection of the
wheels
Removable Battery Box
For multi-shift operation.
Patented design loads without
external sources.
