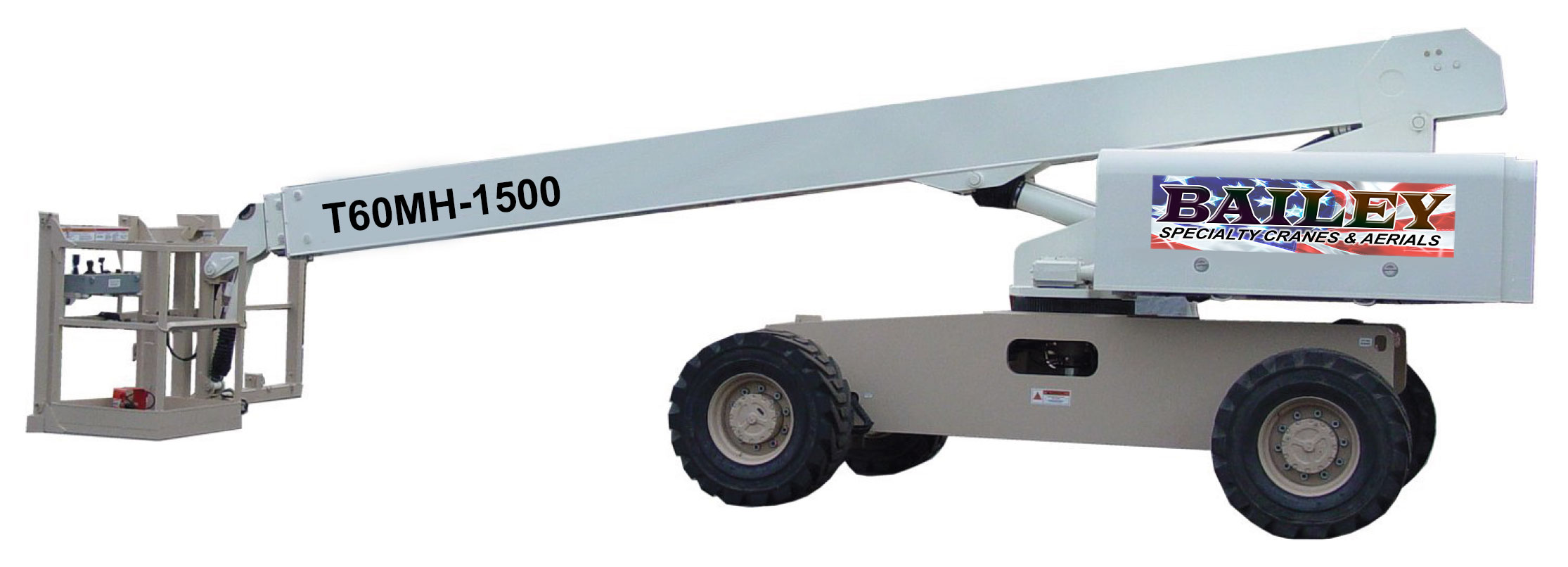

T60MH-1500 High Capacity Boom Lift

T60MH-1500

Standard Features

• Working Height 66-feet (20.12m)
• Platform Height 60-feet (18.29m)
• Stowed Height 8 ft 7 in (261.62cm)
• Stowed Length 29-feet (8.84m)
• 4 Wheel Drive
• 80 hp GM Engine Dual Fuel
• 360° Continuous Rotation Boom
• 6’ Platform (1.83m)
• 160° Platform Rotation
• Hydrostatic Drive
• 1,500-pound (680kg) Platform
Capacity
• 110V Line to Platform
• Proportional Controls
• Platform Display
• Platform Load Sensing
• Self-Diagnostic Control System

US Patents:

• Load Sensing Mechanism #US 7,004,285B2

• Pallet System #US 7,118,314B2

• Material Handling Devise #US 7,182,173B2

Optional Equipment

• Single 1,000-pound (453kg) Winch
• 1,500 lb Forks with one Man Basket
• 7500 Watt Generator
• Generator & Welder Package
• Foam Filled Tires
• Oxy-Acetylene Lines to Platform
• Horn
• ½” Air Line to Platform
• Duetz F4L1011 Diesel Engine
• Strobe Light
• 8’ Basket
• Custom Basket
• Ancillary Equipment Mount
• Platform Work Lights
• Air Compressor

Specifications:

T60MH-1500	US	Metric
Working Height	66 ft	20.12 m
Platform Height	60 ft	18.29 m
Platform Capacity	1,500 lbs	680.39 kg
Platform Size	60 X 36 in	1524.4 X 91.44 cm
Stowed Height	8 ft 7 in	261.62 cm
Stowed Length	29 ft	8.84 m
Horizontal Reach	46 ft	14.02 m
Overall Width (Axl Stwd)	8 ft	2.44 m
Tail Swing	3 ft 11 in	119.38 cm
Outside Turning Radius	18 ft 1 in	551.18 cm
Inside Turning Radius	8 ft 1 in	246.38 cm
Ground Clearance	10.5 in	26.67 cm
Turret Rotation	360° Cont	360° Cont
Platform Rotation	100°	100°
Engine Power	80 hp	80 hp
Hydraulic Tank Capacity	45 Gal	170.34 L
Fuel Tank Capacity	35 Gal	132.49 L
Wheel Base	9 ft	2.74 m
Gross Weight	28,000 lbs	12,700.58 kg
Travel Speed	3.5 mph	3.5 mph
Gradeability (4WD)	58%	58%

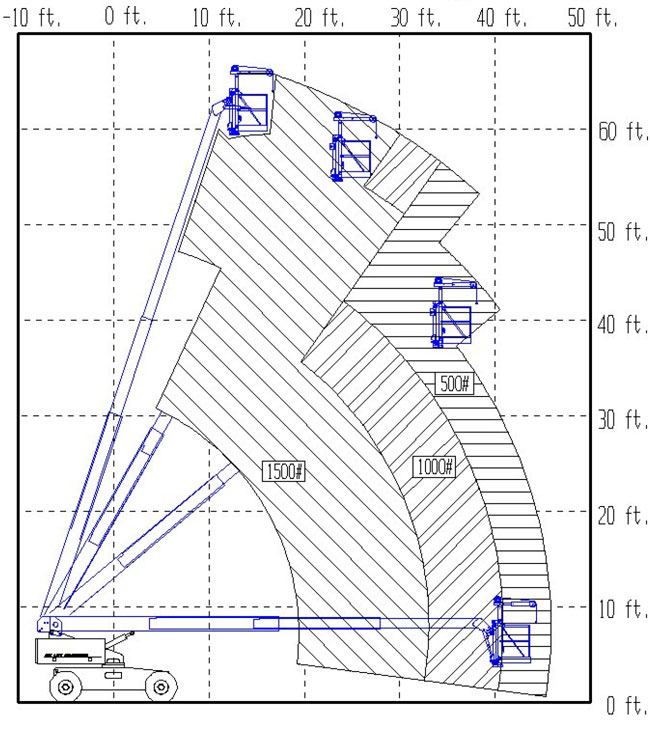

Load Range Diagram:
