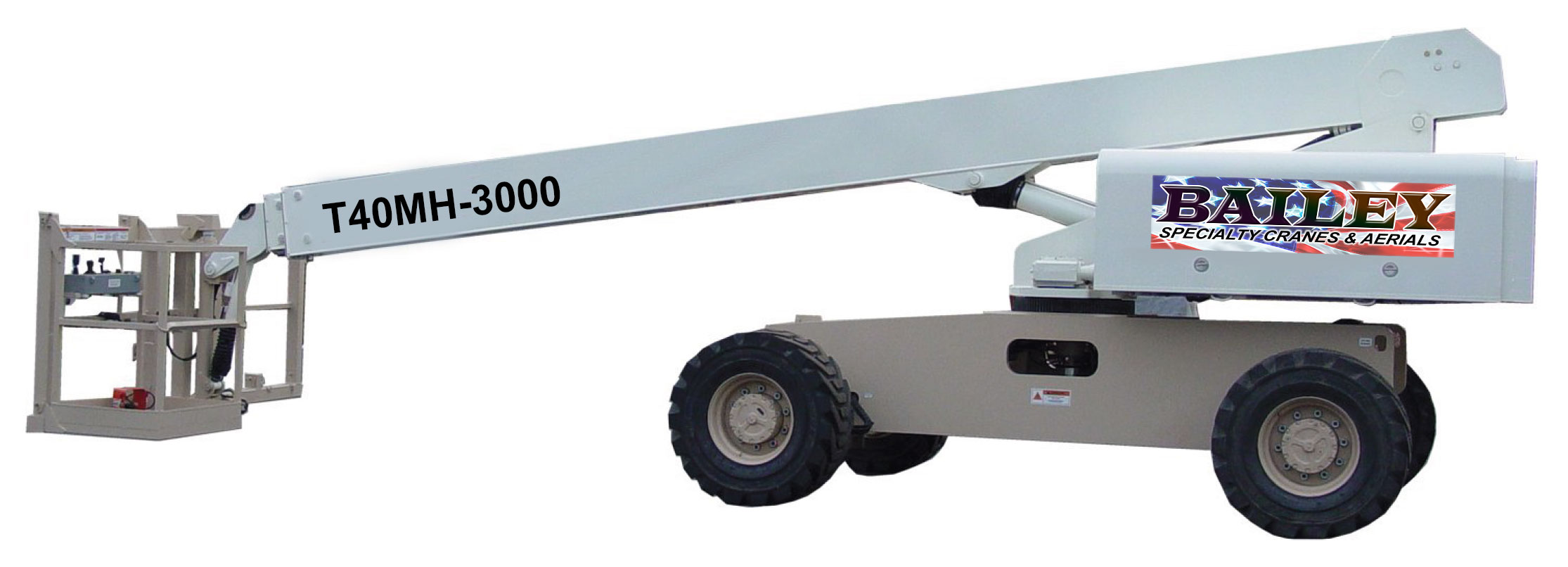

T40MH-3000 High Capacity Boom Lift

T40MH-3000

Standard Features

• Working Height 46-feet (14.0m)
• Platform Height 40-feet (12.2m)
• Stowed Height 8 ft 4 in (2.6m)
• Stowed Length 28-feet (8.5m)
• 4 Wheel Drive
• 80 hp GM Engine Dual Fuel
• 360° Continuous Rotation Boom
• 160° Platform Rotation
• Hydrostatic Drive
• 3000-pound (1360.8kg) Platform Capacity
• 11 OV Line to Platform
• Proportional Controls
• Platform Display
• Platform Load Sensing
• Self-Diagnostic Control System

US Patents:

• Load Sensing Mechanism #US 7,004,285B2

• Pallet System #US 7, l 18,314B2

• Material Handling Devise #US 7,182, l 73B2

Optional Equipment

• Single 1,000-pound (453kg) Winch or Dual 500# Winch
• 2,000 lb Forks with one Man Basket
• 7500 Watt Generator
• Generator & Welder Package
• Foam Filled Tires
• Oxy-Acetylene Lines to Platform
• Horn
• ½" Air Line to Platform
• Diesel Engine
• Strobe Light
• 8-foot Platform
• Custom Basket
• Ancillary Equipment Mount
• Platform Work Lights
• Air Compressor
• Half Track-Track Drive

Specifications:

T40MH-3000	US	Metric
Working Height	46 ft	14.0 m
Platform Height	40 ft	12.2 m
Platform Capacity	3,000 lbs	1360.8 kg
Platform Size	96 X 36 in	2.44 X .9 m
Stowed Height	8 ft 4 in	2.6 m
Stowed Length	28 ft	8.5 m
Horizontal Reach	34 ft 6 in	10.5m
Overall Width (Axl Stwd)	8 ft	2.4 m
Tail Swing	3 ft 11 in	1.2 m
Outside Turning Radius	18 ft 1 in	5.5 m
Inside Turning Radius	8 ft 1 in	2.5 m
Ground Clearance	10.5 in	.3 m
Turret Rotation	360° Cont	360° Cont
Platform Rotation	100°	100°
Engine Power	80 hp	80 hp
Hydraulic Tank Capacity	45 Gal	170.3 L
Fuel Tank Capacity	35 Gal	132.5 L
Wheel Base	9 ft	2.8 m
Gross Weight	25,000 lbs	11,339.8 m
Travel Speed	3.8 mph	3.8 mph
Gradeability (4WD)	60%	60%

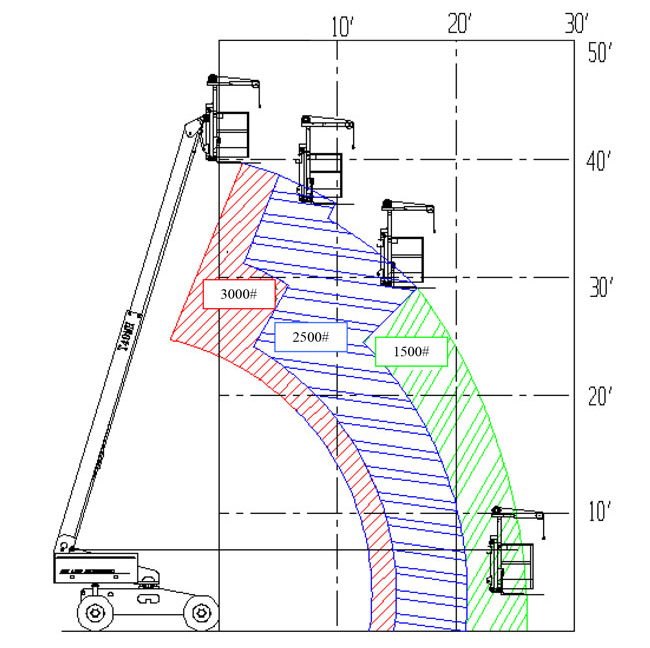

Load Range Diagram:
