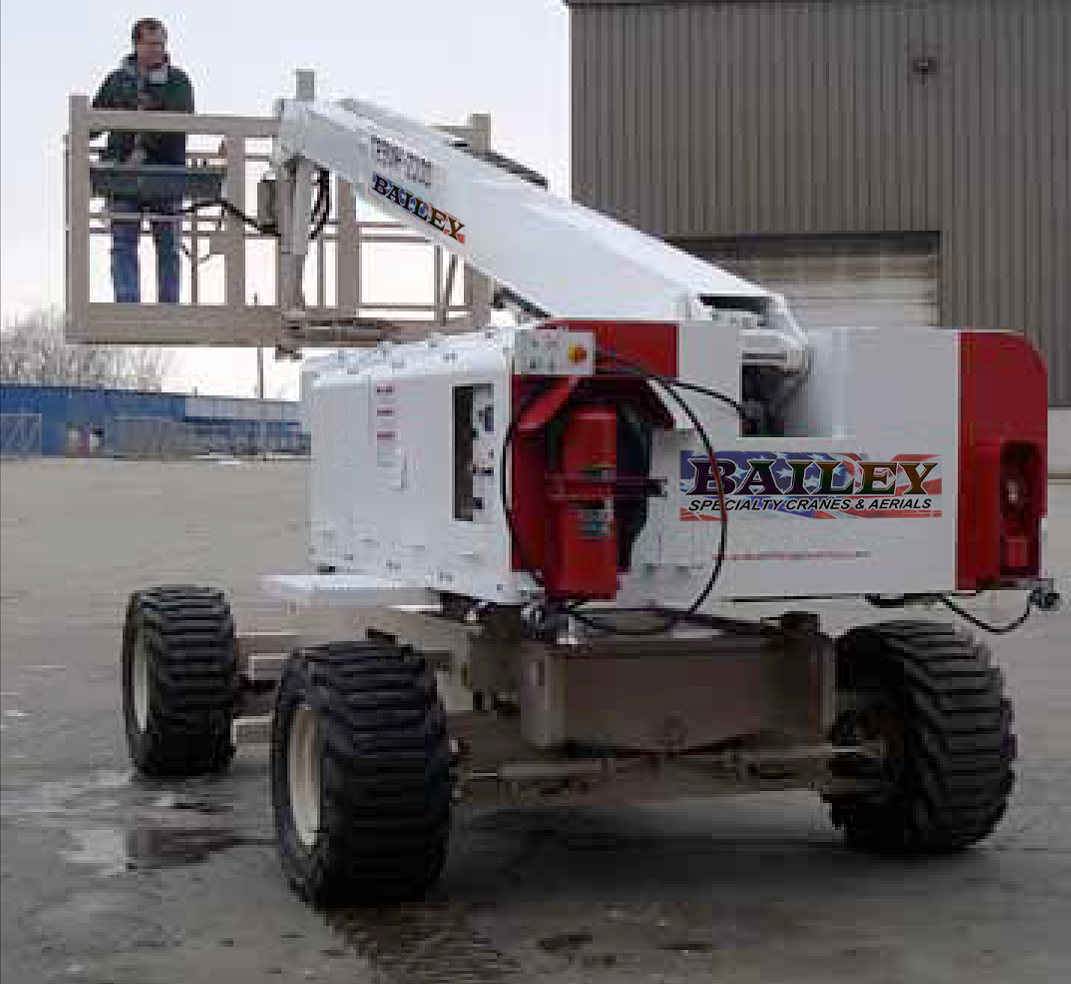

T25MH-2000 Coal Mining Boom Lift

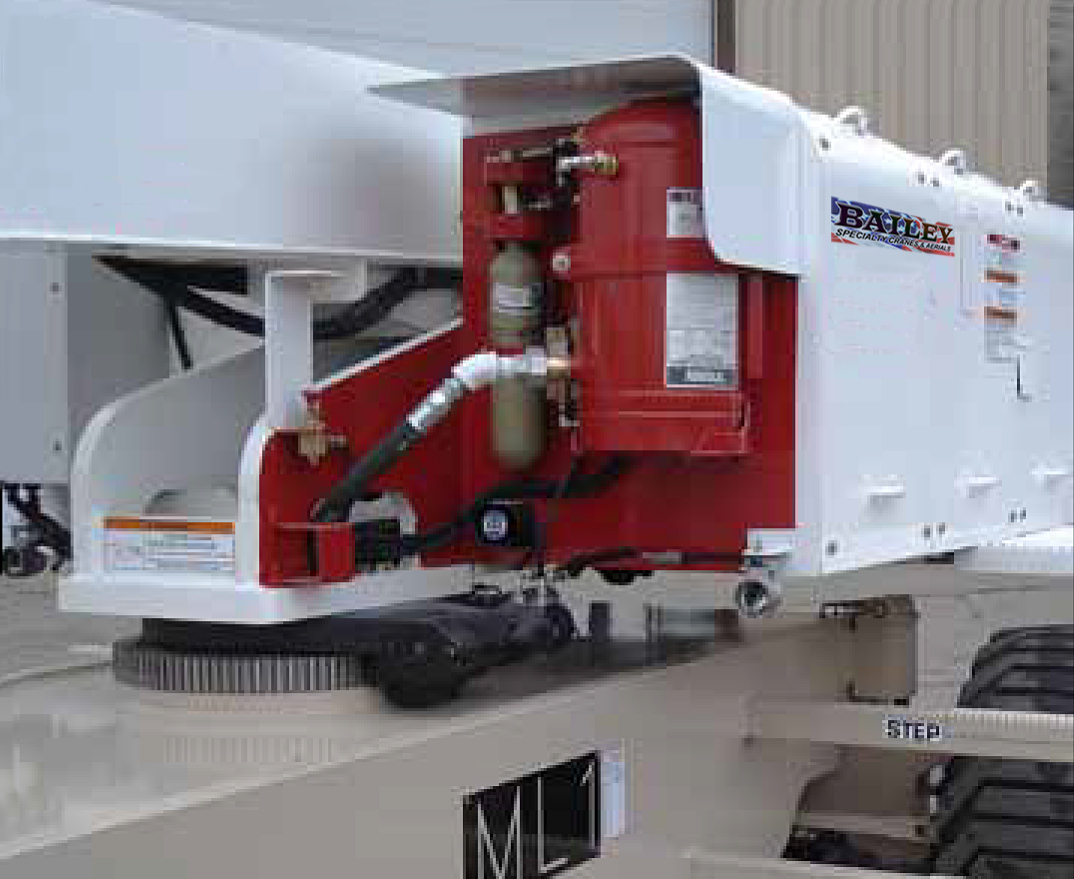

ANSUL A101 FIRE SUPPRESSION SYSTEM

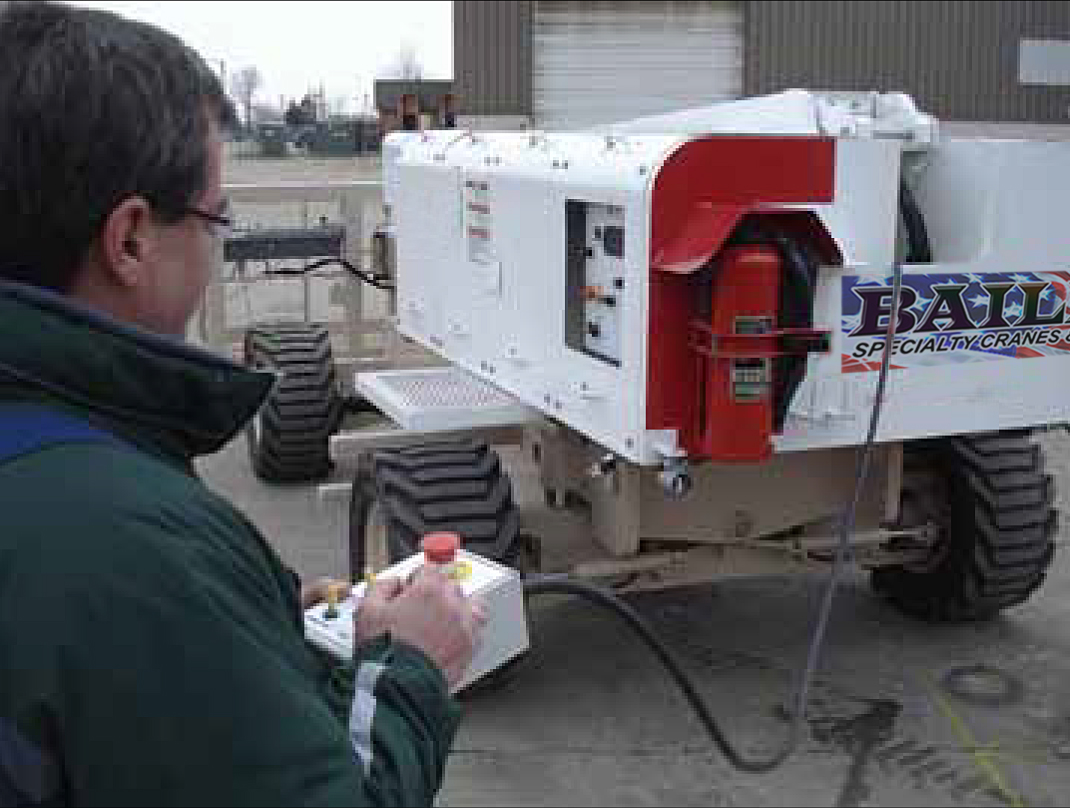

PENDANT CONTROL FOR DRIVE / STEER
Features:
- 76” Low Stowed Height
- Uneven Terrain Oscillating Axle
- 2000 lb Platform Capacity
- Foam Filled Tires
- Removable Side Covers
- Hydrostatic Drive
Options:
- Stabilizers for Operation on Slopes
up to 10 Degrees

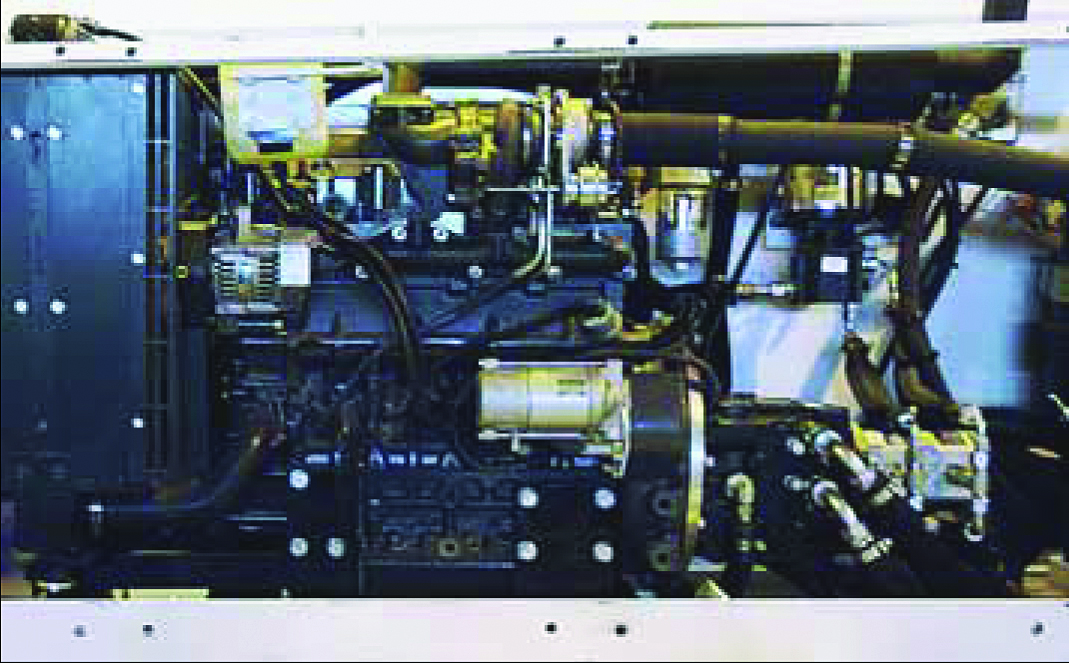

MSHA APPROVED KUBOTA V2403 66HP ENGINE
Specifications:
T25MH-2000 |
US |
Metric |
|---|---|---|
| Working Height | 31 ft | 9.45 m |
| Platform Height | 25 ft | 7.62 m |
| Platform Capacity | 2,000 lbs | 907.18 kg |
| Platform Size | 48 x 96 in | 1.22 x 2.44 m |
| Stowed Height | 76 in | 1.93 m |
| Stowed Length | 19 ft 5 in | 5.94 m |
| Horizontal Reach | 20 ft | 6.10 m |
| Overall Width (Axl Stwd) | 8 ft | 2.44 m |
| Tail Swing | 3 ft 11 in | 1.19 m |
| Outside Turning Radius | 18 ft 1 in | 5.49 m |
| Inside Turning Radius | 8 ft 1 in | 2.44 m |
| Ground Clearance | 10.5 in | .27 m |
| Turret Rotation | 360° Non-Cont | |
| Platform Rotation | 150° | |
| Engine Power | 40 HP Diesel | |
| Hydraulic Tank Capacity | 45 Gal | 170.3 L |
| Fuel Tank Capacity | 35 Gal | 132.5 L |
| Wheel Base | 9 ft | 2.74 m |
| Gross Weight | 20,000 lbs | 9071.8 kg |
| Travel Speed | 3.8 mph | 6.12 kph |
| Gradeability | 30% | |

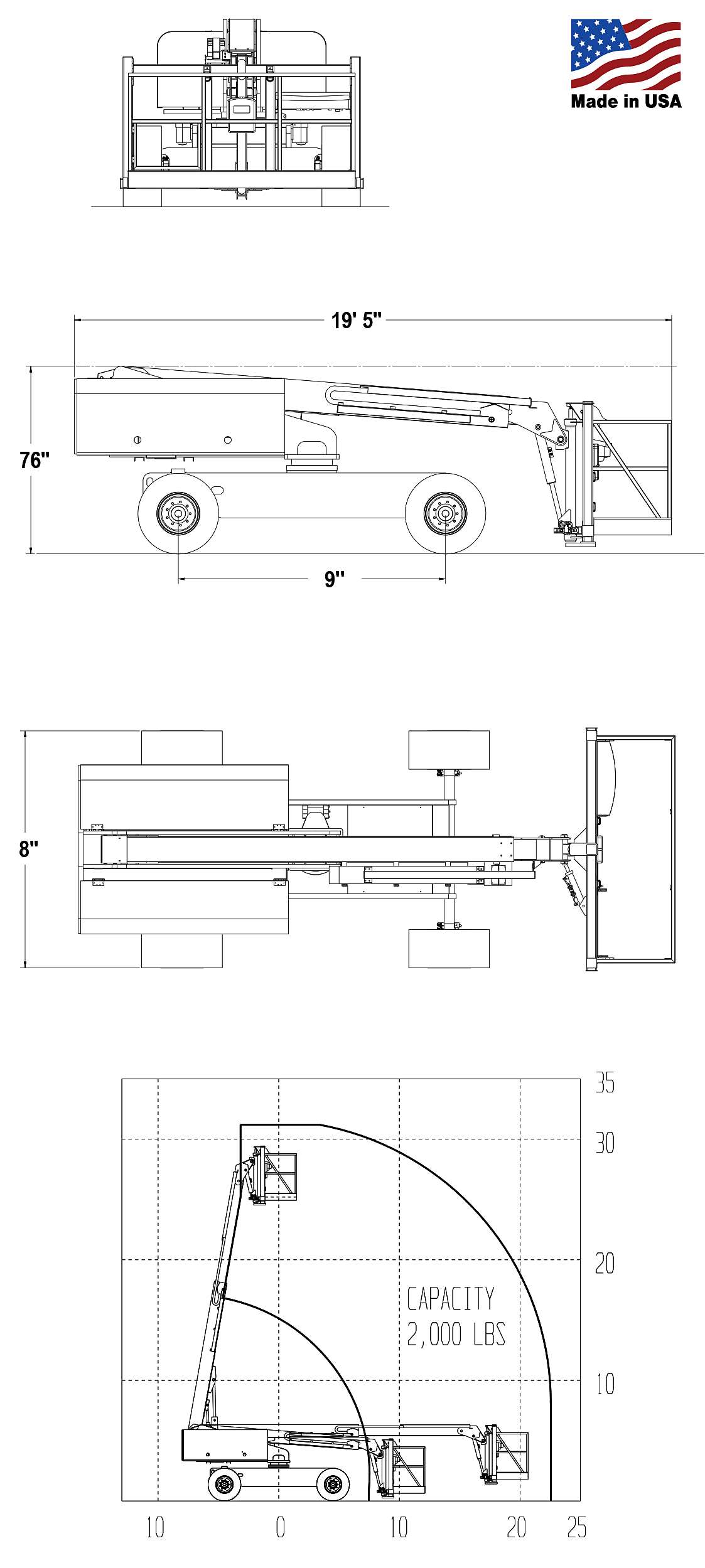

Dimensions & Load Range Diagram:
