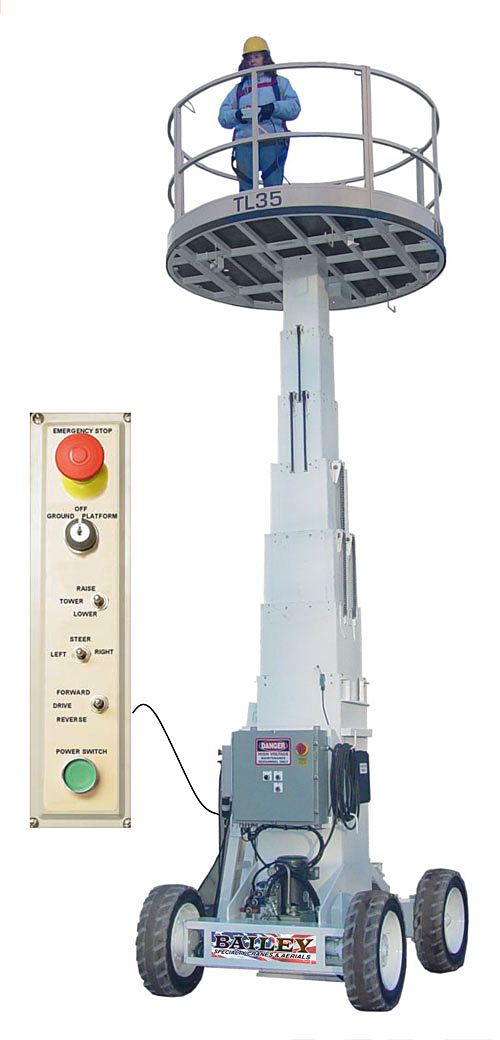

TL35 Custom Lift
TL35 Tower Lift
Tower Lift
- 750 lb (340 kg) Capacity
- 35 ft (10.7 m) Platform Height
- AC Power
- Rigid 7 Section Telescopic Boom
- Removable Rails
- Drive & Steer from Ground Controls
- Handheld Control Pendant
- Rugged Design for Industrial Use
- Ideal for use on Stages, in Theaters,
- Churches and Industrial Settings
Future Developments
- 50 ft Platform Height
- Drive From Platform
Customer Testimonials
“This is an awesome machine!”
“Much stiffer than anything I’ve seen.”
SECIFICATIONS |
||
|---|---|---|
| Platform Height - Elevated | 35 ft | 10.7 m |
| Platform Height - Lowered | 87 in | 2.2 m |
| Overall Height (Rails Installed) | 129 in | 3.3 m |
| Overall Height (Rails Removed) | 87 in | 2.2 m |
| Platform Size | 84 in | 2.1 m |
| Overall Width | 64 in | 1.6 m |
| Overall Length | 94 in | 2.24 m |
| Wheelbase | 64 in | 1.6 mm |
| Ground Clearance | 2-1/2 in | 63.5 mm |
| Platform Capacity | 750 lbs | 340 kg |
| Gross Vehicle Weight | 7000 lbs | 3175 kg |
| Drive Speed - Lowered | 54 ft/min | 16.4 m/min |
| Gradeability | 0% | |
| Turning Radius - Inside | 82 in | 2.1 m |
| Turning Radius - Outside | 138 in | 3.5 m |
Specifications Subject to Change
