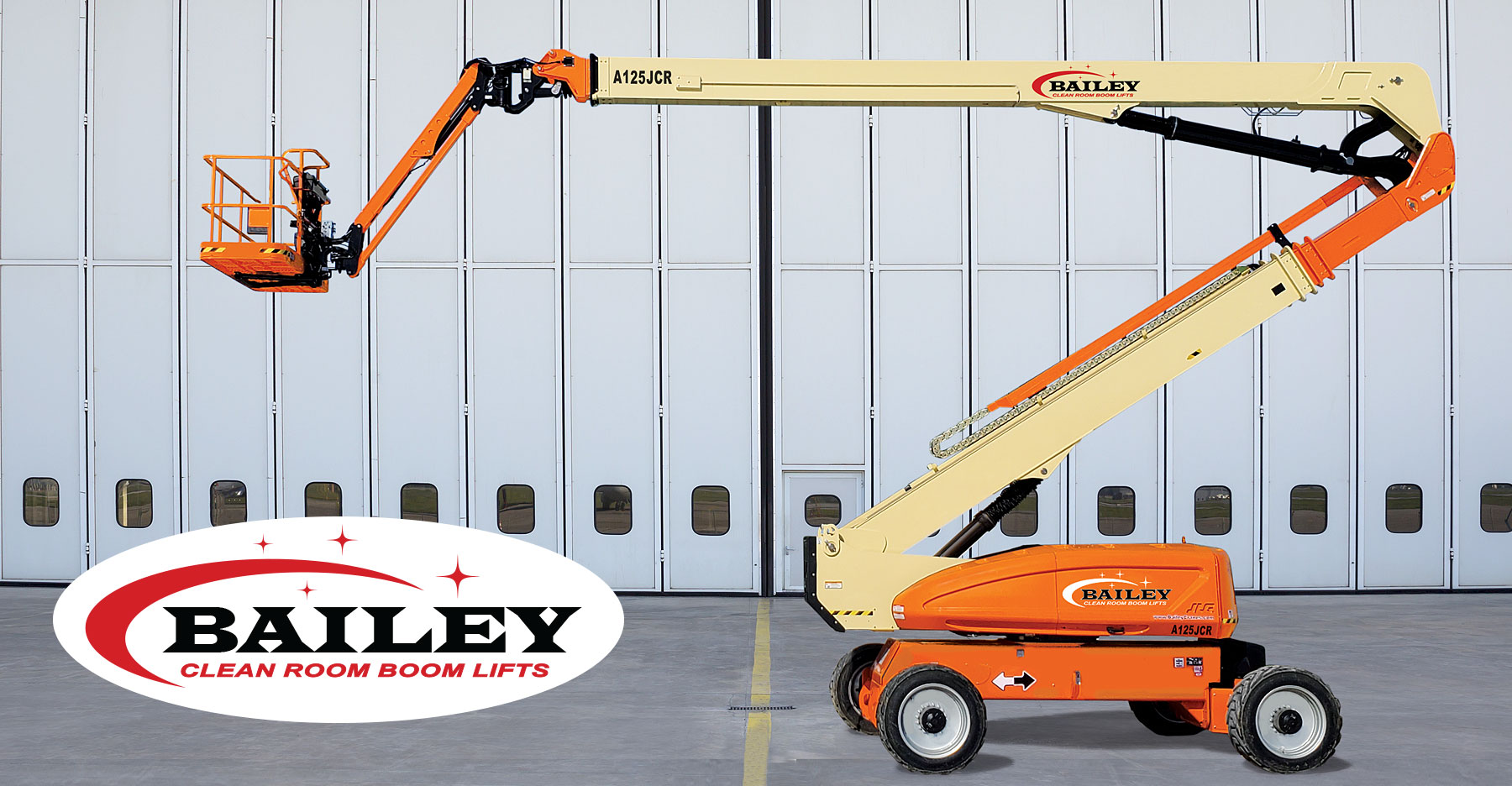

A125JCR CLEAN ROOM LIFT
Our next generation of man lifts are designed specifically to meet the requirements of clean rooms.
- The unit offers multi-shift capacity before charging with their high-capacity 96-volt battery assemblies.
- The lift is built to be highly serviceable and is constructed from off-the-shelf components.
- The learning curve and the chance of error are minimized by retaining an industry-standard user interface.
- The drive function is specifically designed and tuned to operate in the cramped environment of a clean room.
- The drive offers precise controls through a combination of motor controllers and hydrostatic drive control.

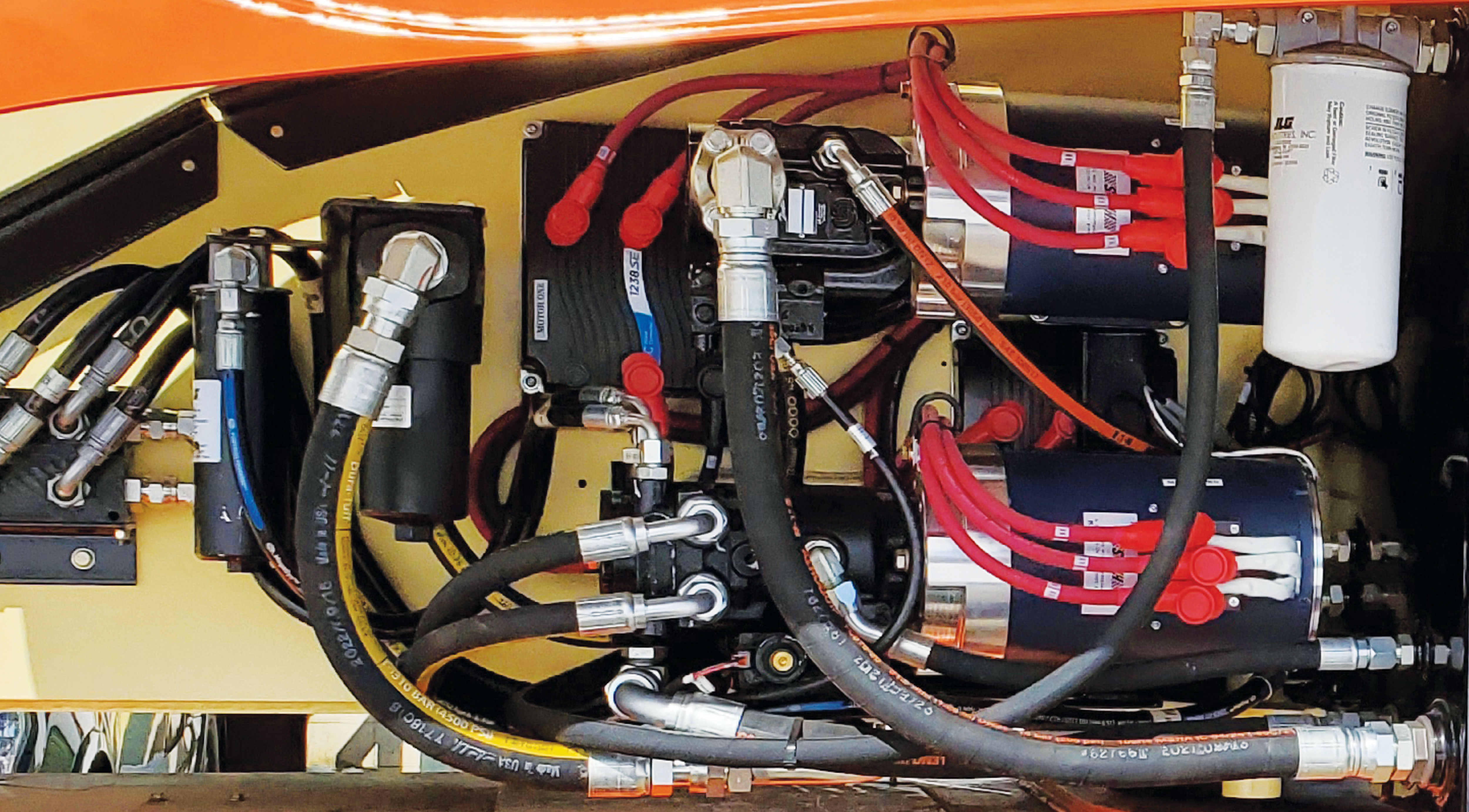

- The High-efficiency three-phase electric motors are used to power the drive and boom functions.
- The boom functions are controlled by a separate motor and compensated axial piston pump that allows for the finesse of small motions and the demands of large flows with equal ease.
- An auxiliary pump and battery are included to ensure no one is ever stuck high in the air.
- The battery charger is a next-generation high-frequency fully programmable battery charger.
- The battery charger has the option of becoming part of a service network.
- We offer optional non-marking wheels as requested. These non-marking wheels are solid and increase the overall rigidity of the lift.

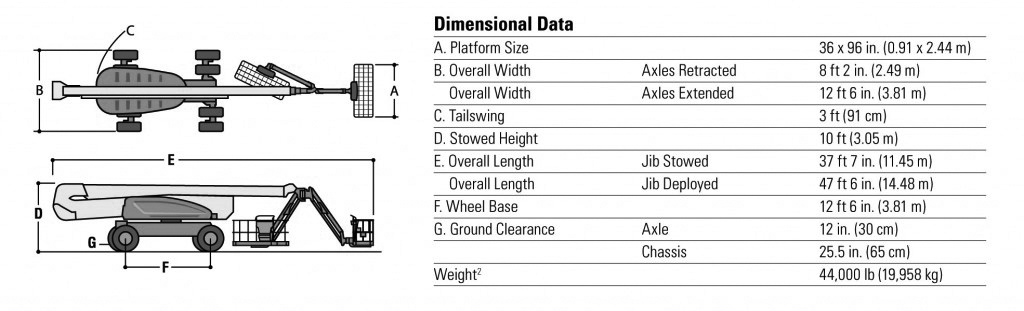

Specifications
A125JCR |
US |
Metric |
|---|---|---|
| Platform Height | 125 ft | 38.1 m |
| Horizontal Reach (Unrestricted) | 63 ft 2 in | 19.3 m |
| Horizontal Reach (Restricted) | 53 ft 2 in | 169.2 m |
| Platform Capacity (Restricted) | 1000 lbs | 453.59 kg |
| Platform Capacity (Unrestricted) | 500 lbs | 226.8 kg |
| Stowed Height | 10 ft | 3.05 m |
| Stowed Length (Transport Mode) | 37 ft 7 in | 11.46 m |
| Stowed Length (Working Mode) | 47 ft 6 in | 14.48 m |
| Overall Width (Axles Retracted) | 8 ft 2 in | 2.49 m |
| Overall Width (Axles Extended) | 12 ft 6 in | 3.81 m |
| Tail Swing | 11 ft 3 in | 3.43 m |
| Outside Turning Radius (axles extended) | 19 ft 4 in | 5.89 m |
| Inside Turning Radius (axles extended) | 8 ft | 2.4 m |
| OutsideTurning Radius (axles retracted) | 22 ft 6 in | 6.8 m |
| Inside Turning Radius (axles retracted) | 14 ft 5 in | 4.4 m |
| Travel Speed | 3.25 mph | 5.2 km/h |

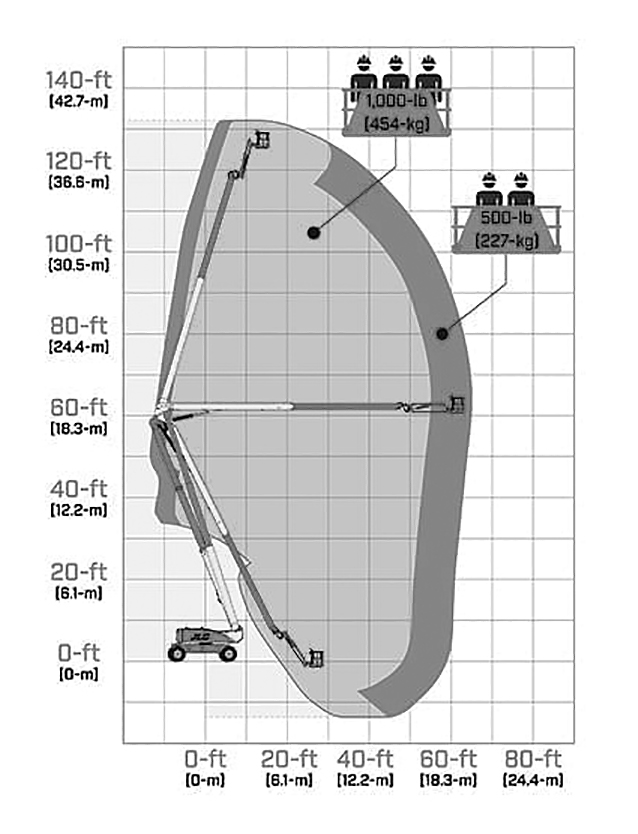

Range Diagram
