Junior Mini Crane Glass Lifter
Proactive Safety features
- Warning you of potential problems
- User friendly command prompts
- Continually Monitors Lifting Operations
- Maximizes productivity
- Reduces human error

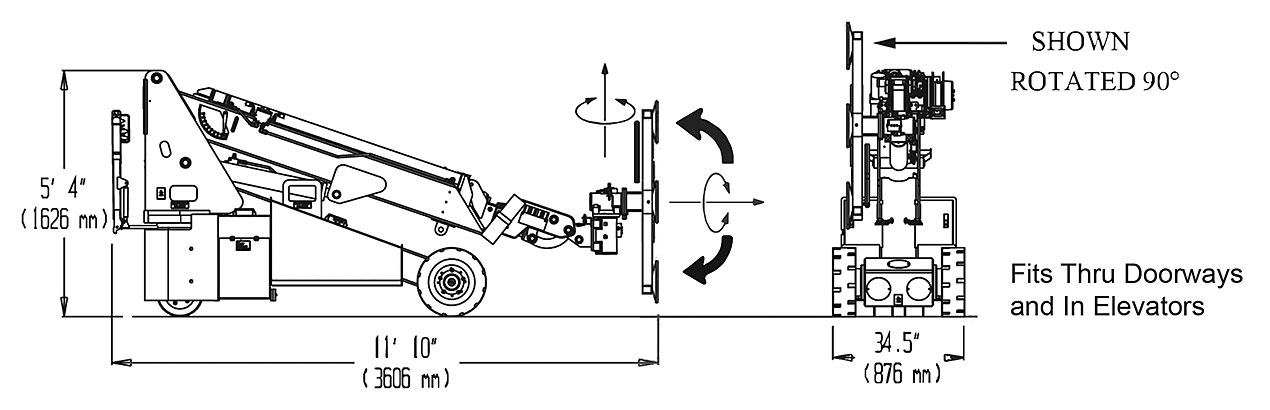

The Junior Telehandler is shown with the glass suction cup attachment and 3 axis manipulator. This provides extensive glass lifting capability. Other materials can be lifted including metals, granite, quartz, building panels and even concrete. This has significantly more reach than the competition.
- 24 Feet (7.33M) of Vertical Reach
- 14 Feet (4.27M) of Horizontal Reach
- 1000 LB (500Kg) Capacity
- Woods Power Grip system
- 4275 LB (1939 Kg) Machine Weight
- 24 Volt Battery Powered
Specifications
Model: Junior
Glazier Capacity: 1,100 lbs
Vertical Reach: 24 Feet (7.33M)
Reach: Industry leading reach with
below grade capability.
Battery Power: 24V 435Amp-Hour
Weight: 4,275 lbs
Steering: Rear Wheel
Charger: On-board 110 Volts AC
Drive: Rear Wheel Hydraulic Drive with Joystick and Speed Dial for precise control.
Rated Load Limiter: Displays rated load and actual load. Stops when rated load is reached. Detects which attachment is installed and automatically adjusts load parameters.
Progressive Function Control: Adjusts the maximum drive and lift speeds to limit unsafe operation based on the
following:
- Steering Angle (Drive slow with tight radius)
- Boom Height and Reach
- Lifted Load (Slow when closer to limit)
Radio Remote Controls
Walkie Handle
ISO 9001:2015 REGISTERED MANUFACTURING COMPANY
Glass Lifter Features

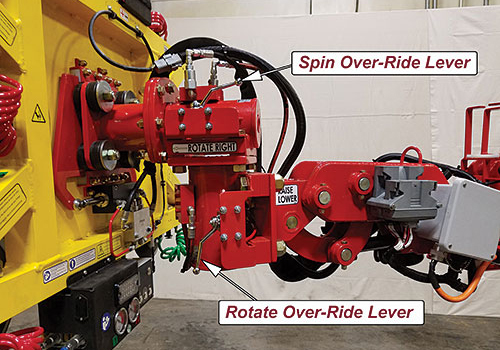

Manual over-ride for quick, precise adjustments

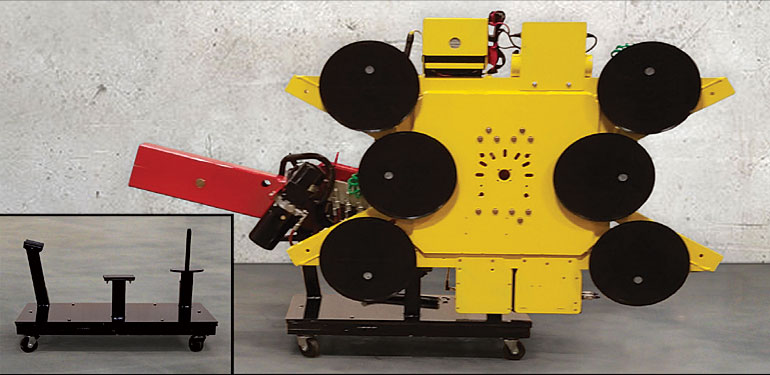

Tip assembly unloads on cart for tight access maneuvering
Three 180 Rotary Actuators Provide Precise Positioning

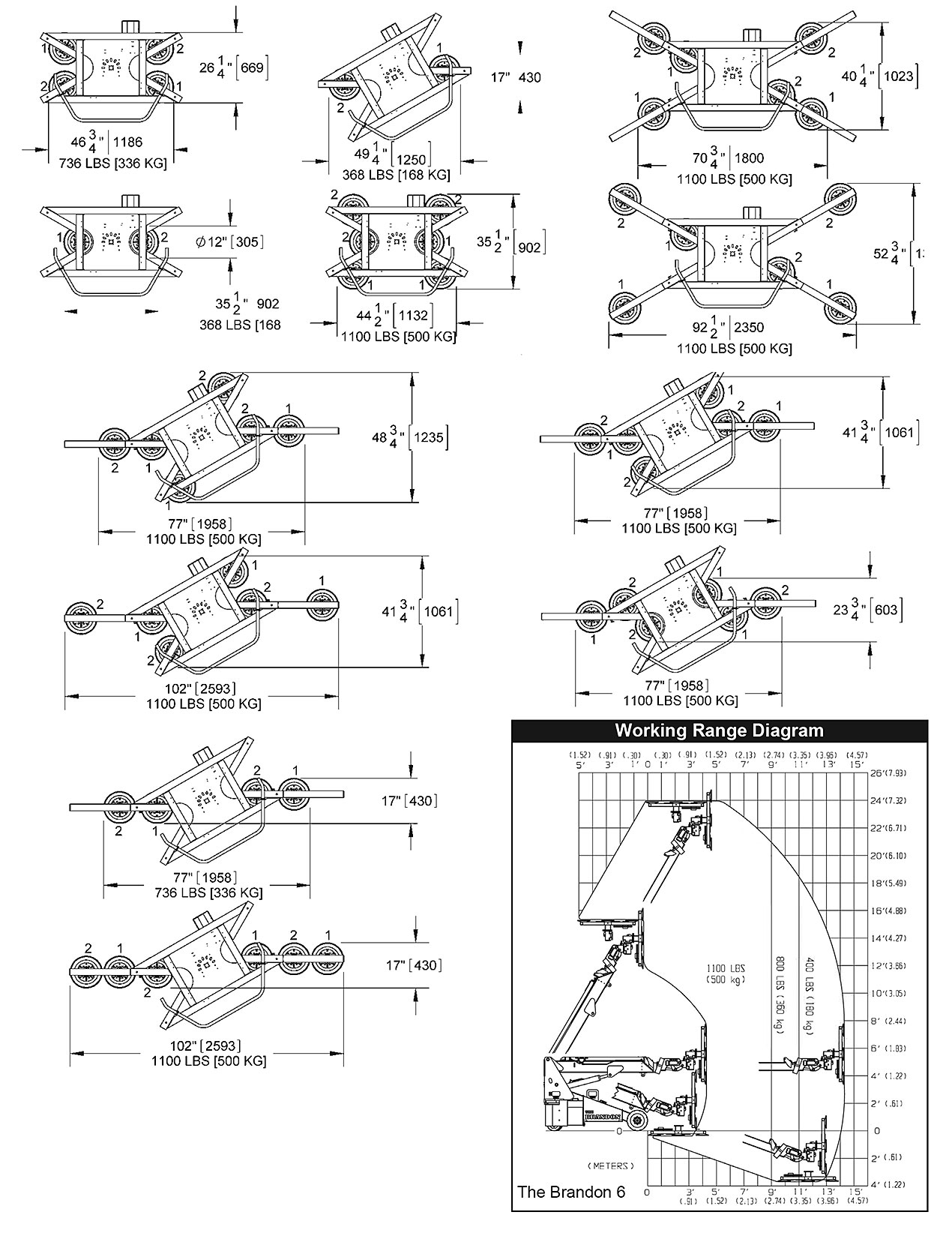

Frame Configurations and Capacities
Features
Rated Load Limiter
Automatically detects attachment
and adjusts loading parameters
Optional Stabilizers
Removable Battery Box
For multi-shift operation.
Patented design loads without
external sources.
