Brandon Omni 10 Glass Lifter
Proactive Safety features
- Warning you of potential problems
- User friendly command prompts
- Continually Monitors Lifting Operations
- Maximizes productivity
- Reduces human error
The Brandon Omni Glass Lifter Telehandler is shown with the glass suction cup attachment and 3 axis manipulator. This provides extensive glass lifting capability. Other materials can be lifted including metals, granite, quartz, building panels and even concrete. The Brandon 10 OMNI is capable of multi-directional steering. It allows the user to maintain its orientation while maneuvering sideways, rotate about its center for tight turning, and even function with standard drive just like an automobile. It affords the user exceptional control during operation.
- 37 Feet (11.278M) of Vertical Reach
- 24 Feet (7.32M) of Horizontal Reach
- 1100 LB (499 Kg) Capacity
- Woods Power Grip system
- 4 Wheel Streering
- 2 Wheel Drive, 2 Wheel Brakes
- On-board dual 110 Volts AC or optional external 480 Volts 3 Phase
Specifications

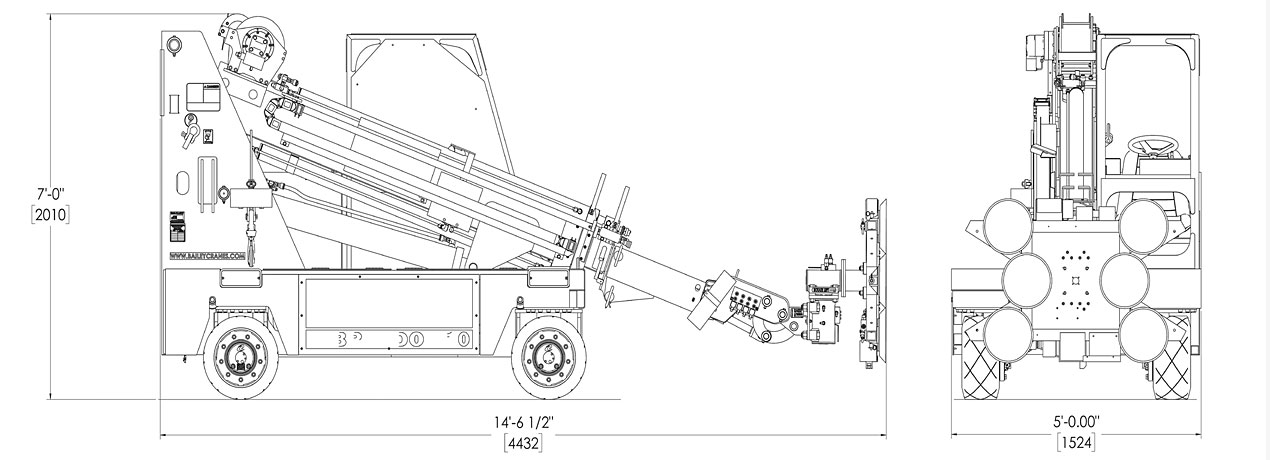

Model: Brandon 10 (with cab or no cab)
Capacity: 10,200 lbs
Battery Power: 35 HP AC Motor
Steering: Omni Directional Wheels
Drive: 2 Wheel Drive
Charger: On-board dual 110 Volts AC or optional external 480 Volts 3 Phase
Rated Load Limiter: Displays rated load and actual load. Stops when overload is reached. Detects attachment and adjusts load parameters.
ISO 9001:2015 REGISTERED MANUFACTURING COMPANY
Glass Lifter Features
Manual over-ride for quick, precise adjustments
Tip assembly unloads on cart for tight access maneuvering
Omni-Directional Drive
Two Wheel Steer
Typical front wheel steering like an automobile
Spin Steer
Wheels rotate to a position so it rotates about its center
90° Crab Steer
Wheels rotate 180° to provide sideways travel
Three 180 Rotary Actuators Provide Precise Positioning

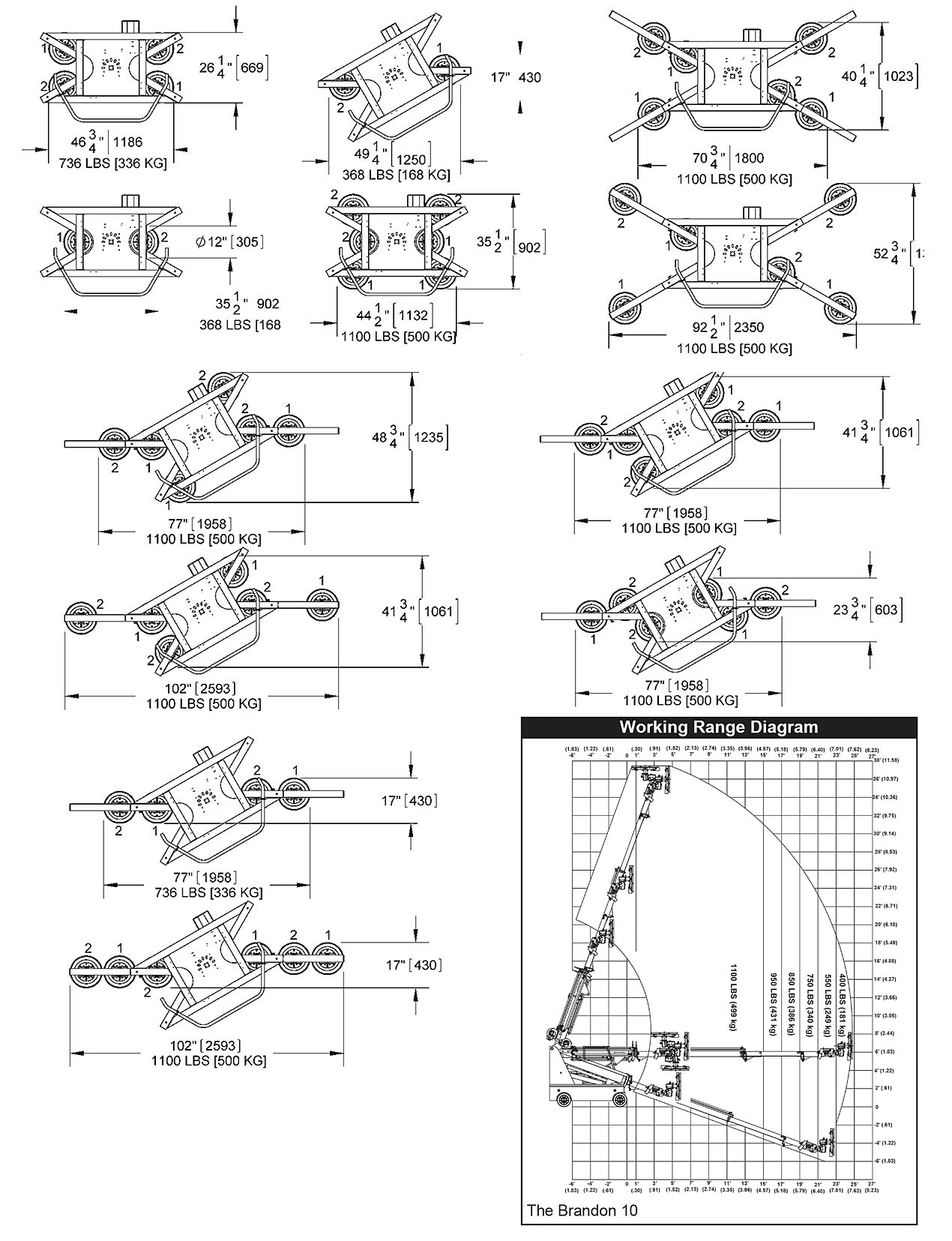

Frame Configurations and Capacities
Features
Rated Load Limiter
Automatically detects attachment
and adjusts loading parameters
Radio Remote Control
For the no cab version
